Brake Line Parts

A suspension lift can increase the distance between a 4WD's chassis and axles, leaving the factory brake hoses with insufficient length as the suspension extends. Extended brake lines replace the original flexible hoses with longer ones, allowing additional suspension movement without placing excessive tension on the brake connections.

Extended brake line kits are particularly relevant to lifted 4WDs with increased suspension droop or articulation. Unlike brake line spacers, which reposition existing mounting points, extended hoses provide additional physical length where the factory arrangement is no longer suitable. Use the Formula 4x4 vehicle search to identify compatible brake line parts for your suspension setup.

What Are Extended Brake Lines?

Extended brake lines are replacement flexible brake hoses designed to accommodate additional movement between a vehicle's fixed and moving brake components.

In a conventional hydraulic braking system, rigid brake pipes carry fluid along relatively stationary sections of the vehicle, while flexible hoses connect areas where movement occurs. These hoses allow the suspension and steering components to move without breaking the hydraulic connection.

When suspension travel increases, the original hoses may no longer provide sufficient length throughout the full range of movement.

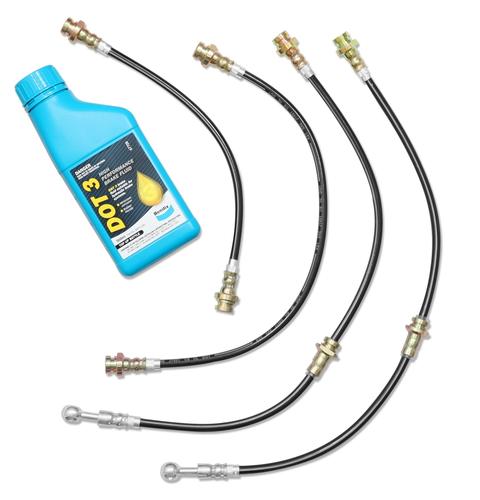

An extended brake line kit addresses this by replacing the relevant factory hoses with longer assemblies. The replacement must have compatible end fittings, suitable routing and enough flexibility to accommodate the intended suspension movement.

Extended hoses do not automatically increase braking force or improve pedal response. Their main purpose is to maintain a secure hydraulic connection without unwanted stretching, twisting or interference.

When Do You Need Extended Brake Lines After a Lift?

Not every 4WD suspension lift requires longer brake hoses. The need depends on the vehicle's suspension design, lift height and maximum available wheel travel.

The critical point is often full suspension droop, when the axle or wheel assembly reaches its maximum downward movement relative to the chassis.

A brake hose that has adequate slack at normal ride height may become stretched when the suspension extends. This can be particularly important on off-road vehicles, where uneven terrain allows individual wheels to move through greater articulation.

Extended brake lines may be necessary when:

• The factory hoses become taut before the suspension reaches full extension.
• Additional suspension travel exceeds the length available from the original hose arrangement.
• Existing hoses cannot be repositioned sufficiently without introducing sharp bends, rubbing or interference.
• A suspension modification specifically requires longer hoses under its installation instructions.

Lift height alone does not determine the required hose length. Two vehicles with similar ride-height increases may have different suspension droop limits and brake hose requirements.

A qualified technician should assess the available hose movement throughout the suspension's operating range before determining whether replacement lines are necessary.

Extended Brake Lines or Brake Line Spacers: Which Do You Need?

Extended brake lines and brake line spacers address similar clearance concerns, but they work differently.

Extended brake lines replace the original flexible hoses with longer assemblies. They are appropriate where the existing hose length cannot accommodate the required movement, even with suitable mounting arrangements.

Brake line spacers and relocation brackets retain the original hoses and reposition their mounting points. This can provide additional usable slack without replacing the hydraulic hoses, provided the revised routing remains suitable.

A spacer may be sufficient where the factory hose has adequate overall length but its original bracket position restricts movement. Where the hose itself is too short, repositioning the bracket may not solve the problem.

The distinction is important because neither solution should be selected on lift height alone. Hose length, mounting position, suspension geometry and clearance all contribute to the correct setup.

What Should You Check When Choosing Extended Brake Lines?

A replacement brake hose needs to match more than the required length. Its fittings, mounting arrangement and compatibility with the existing hydraulic system are equally important.

Start with the vehicle's original brake hose configuration and the modifications already fitted. Different suspension designs may require different hose lengths and routing, even when they achieve similar ride heights.

Important selection considerations include:

• Hose length: Sufficient for the intended suspension movement without excessive slack that could catch on surrounding components.
• End fittings: Correct connections for the vehicle's brake pipes, calipers and mounting points.
• Hose routing: Suitable clearance from tyres, suspension components, exhaust heat and abrasive surfaces.
• Vehicle compatibility: Correct application for the braking system, suspension arrangement and relevant vehicle specifications.

Brake hose construction also varies between products. Materials and protective coverings should be confirmed through the individual product specifications rather than assuming every aftermarket hose uses the same construction.

How Are Extended Brake Lines Fitted?

Fitting extended brake lines involves disconnecting the original flexible hoses and installing replacement assemblies into the hydraulic braking system.

Unlike fitting a simple relocation bracket, replacing a hydraulic brake hose opens the sealed brake circuit. Air can enter during this process, so the system must be correctly bled after installation.

The work generally includes removing the original hoses, securing the replacements to their designated mounting points and checking that the fittings are correctly connected.

After installation, several checks are essential:

• Secure connections: All fittings and mounting fasteners must be tightened to the manufacturer's specified requirements.
• Correct routing: Hoses must remain free from twisting, stretching, rubbing or sharp bends during suspension and steering movement.
• Hydraulic bleeding: Air must be removed from the affected brake circuit using the appropriate procedure.
• Leak and function testing: The completed system must be checked for fluid leaks, correct pedal operation and braking performance.

Some vehicles require specific bleeding procedures because of their ABS or hydraulic system design.

Brake hose replacement is safety-critical work, so installation by a qualified brake technician is recommended. The vehicle should undergo appropriate brake testing and a controlled road test before returning to regular use.

Do Extended Brake Lines Need to Meet Vehicle Standards?

Replacement brake hoses must be suitable for the vehicle's hydraulic braking system and comply with applicable safety and roadworthiness requirements.

The applicable requirements depend on the vehicle, the replacement components and the nature of the modification. Inspection and approval procedures can also differ depending on where the vehicle is registered.

A brake hose being marketed for a lifted 4WD does not automatically establish its compliance for every vehicle or suspension configuration.

Before installation, confirm the replacement hose's specifications and relevant compliance documentation. If the vehicle has undergone substantial suspension or braking modifications, check whether additional engineering assessment is required.

Shop Brake Line Parts with Formula 4x4

If your lifted 4WD needs additional brake hose length to accommodate suspension travel, an appropriately specified extended brake line kit can help maintain suitable hydraulic connections throughout the suspension's movement.

Fixing one damaged section? Single brake line parts are sold separately, with complete brake line kits in the same Formula 4x4 brakes range.

Explore brake line parts with Formula 4x4 and use the vehicle search to identify compatible applications. If you're unsure whether your setup requires longer hoses or a mounting adjustment, contact our team for assistance.
