Stopping an N90 Hilux sagging under load starts at the rear leaf springs. Formula 4x4 South Africa covers the GUN226R, 227R with heavier constant load options and heavy duty leaf spring bush kits that keep a loaded bakkie level and controlled. Part of our full guide to the N90 Hilux suspension range.
The N90 Hilux carries its load on rear leaf springs, and that is where a loaded bakkie sags first. Add a canopy, drawers, water and a trip's worth of gear, or hitch a trailer, and the rear drops, the headlights point skywards and the steering goes light. Getting the rear right is what keeps a loaded N90 level, safe and comfortable on a long gravel run.
Factory leaf springs are rated for a standard load on tar. Pile on a permanent load like a canopy and drawers, or tow, and the springs compress past their comfortable range. The rear sits low, which lifts the nose, reduces steering weight and points the headlights up at oncoming traffic. It also means the springs and bushes work harder and wear faster. The fix is to raise the rear rate for your constant load and keep the wear parts fresh.
The takeaway: the rear sags because the factory springs are not rated for your added load, and matching the rear to that load fixes it.

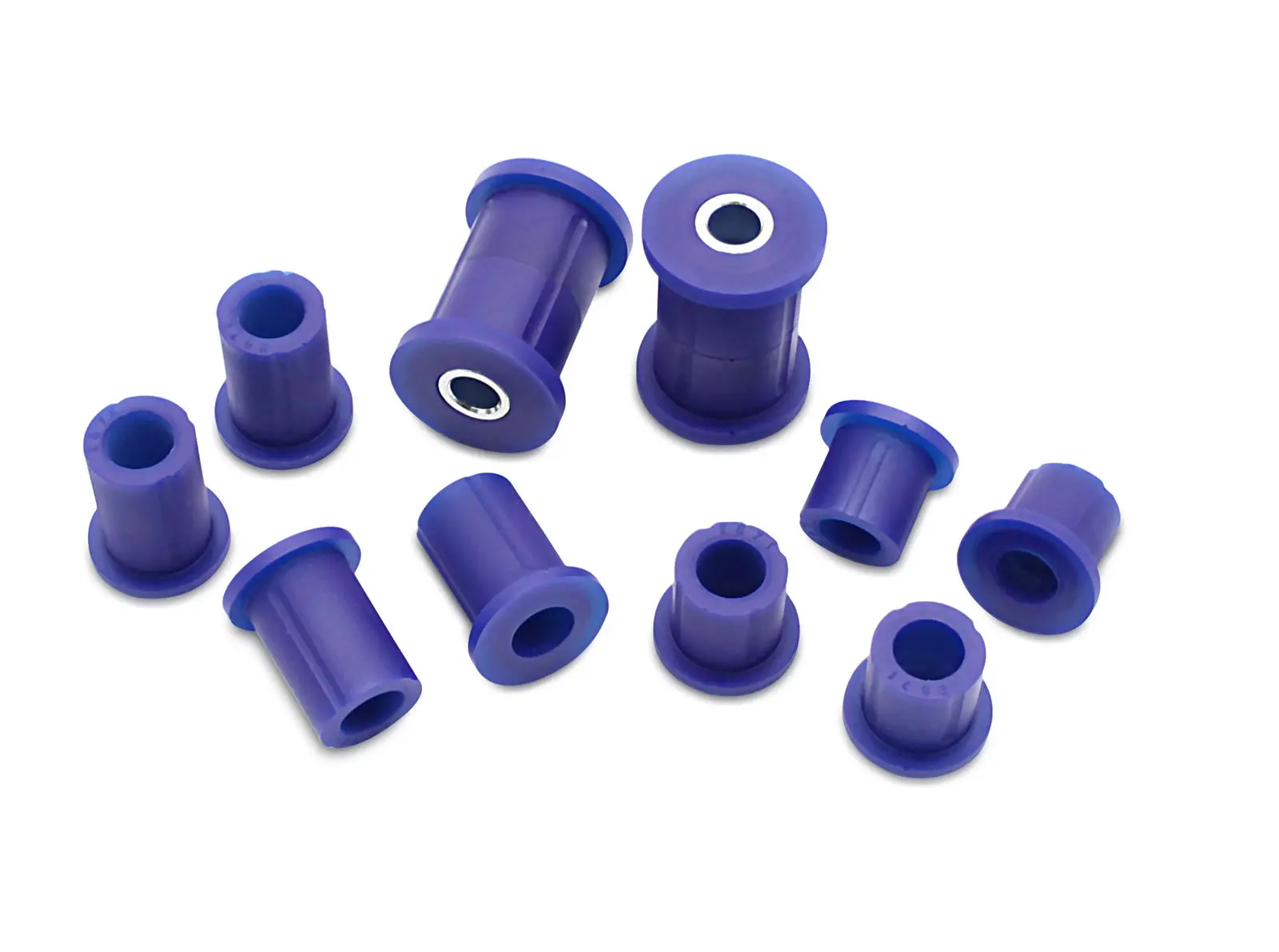

Both play a part. Heavier constant load leaf springs raise the rear rate so the bakkie sits level with a permanent load. Just as important are the wear parts that keep the rear located and controlled: a complete heavy duty leaf spring bush kit, greasable shackle and pin kits, and rear eye bushes built for hard use. Worn, soft bushes let the axle move around and make the rear feel loose, so fresh heavy duty bushes are part of the answer, not an afterthought.
The takeaway: match the spring rate to your constant load and fit fresh heavy duty bushes, so the rear stays level and located.
A level rear is not just about looks. When the rear sags, the nose lifts and the headlights aim high, which dazzles oncoming drivers on a night gravel run. The front tyres carry less weight, so steering goes light and grip drops. Braking balance shifts rearward. Restoring ride height with the right springs brings headlight aim, steering weight and braking back to where Toyota intended, which matters most exactly when the bakkie is fully loaded far from home.
The takeaway: levelling a loaded rear restores headlight aim, steering weight and braking, which makes a loaded bakkie safer to drive.
|
Option |
Best for |
Adjustable |
Keeps rear located |
|
Heavy duty constant load leaf springs |
Permanent load, canopy, trailer |
No |
Yes |
|
Heavy duty leaf spring bush kit |
Any loaded bakkie |
No |
Yes |
|
Greasable shackle and pin kit |
Longevity, hard use |
No |
Yes |
The takeaway: a heavier spring for the load plus fresh heavy duty bushes is the combination that keeps a loaded N90 level and controlled.
Looking for more information about N90 Hilux rear springs and load carrying suspension? Below we answer the most commonly asked questions
See the complete range: N90 Hilux suspension upgrade.
